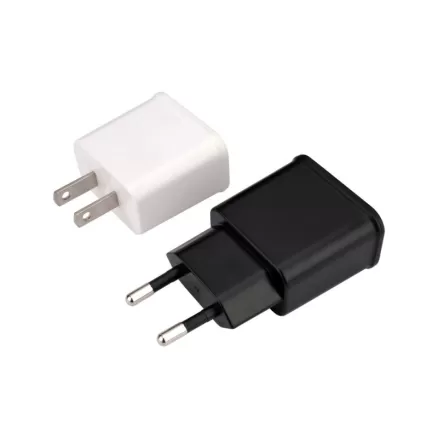

AK06WG-xxxyyyyza (for definition of variables xxx, yyyy, z and a see model list for details)
Input: 100-240V~, 50/60Hz, 0.2A Output: See model list for detail.
Inquire NowModel Differences:
1. All models in AK06WG-xxxyyyyza series are identical except for the output rating, model name, output type,
plug type, enclosure shape, some uncritical components, the secondary circuit of PCB layout & circuit
diagram, and transformer secondary winding. The optional components: CY1, CY2 & CY3, L1, L2, C8.
Model list
Models | Input Rating | Output | Output | Max. | Transformer | |
AK06WG-xxxyyyyza | 100-240V~, | 5.0 | 0.01-1.20 | 6 | AK06WG-05 | |
AK06WG-xxxyyyyza | 3.0-7.5 | 0.01-1.20 | ||||
7.6-13.5 | 0.01-0.78 | AK06WG-12 | ||||
13.6-19.5 | 0.01-0.44 | AK06WG-15 | ||||
19.6-24.0 | 0.01-0.30 | AK06WG-24 |
Variables definition
“xxx” xxx is 3 digital number from 030 to 240, which represent output voltage in Volt after dividing by 10, in a step of 0.1V, for example, 240 represents for 24.0V.
“yyy” yyyy is 4 digital number from 0001 to 0120, which represent output current in Ampere after dividing by 100, in a step of 0.01A, for example, 0120 represents for 1.20A.
“z” z= U, V, B, C, J, S, K indicate difference plug portion or type.
Models AK06WG-xxxyyyyzU with USB port are only for 5.0Vdc output.
Models AK06WG-xxxyyyyza (a=W) with non-detachable output cord used.
By multiplication of output voltage and output current, the type designations are limited through the max. output power.
Z | Plug Type |
U | USA plug, Direct plug-in type |
V | EU plug, Direct plug-in type |
B | UK plug, Direct plug-in type |
C | China plug, Direct plug-in type |
J | Japan plug, Direct plug-in type |
S | Australia plug, Direct plug-in type |
K | Korea plug, Direct plug-in type |
